JGX-0400D-31.5A Wire Rope Vibration Isolator Non-Linear Elasticity Drop-in Replacement Rapid Prototyping Damper

JGX-0400D-31.5A — Non-Linear Elasticity Wire Rope Isolator with Drop-in Replacement and 7-Day Rapid Prototyping

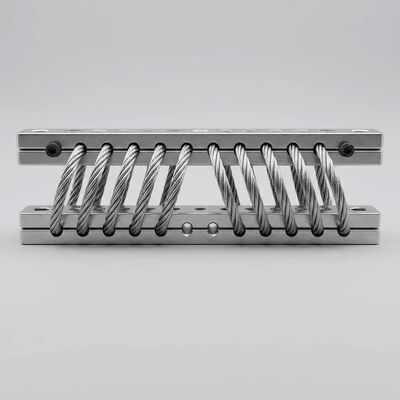

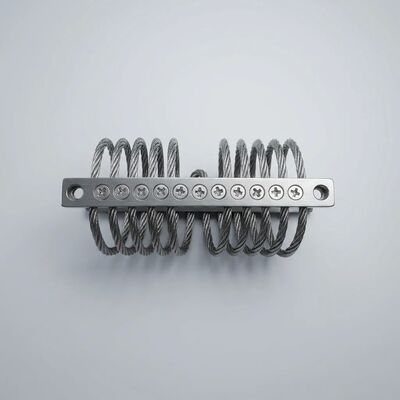

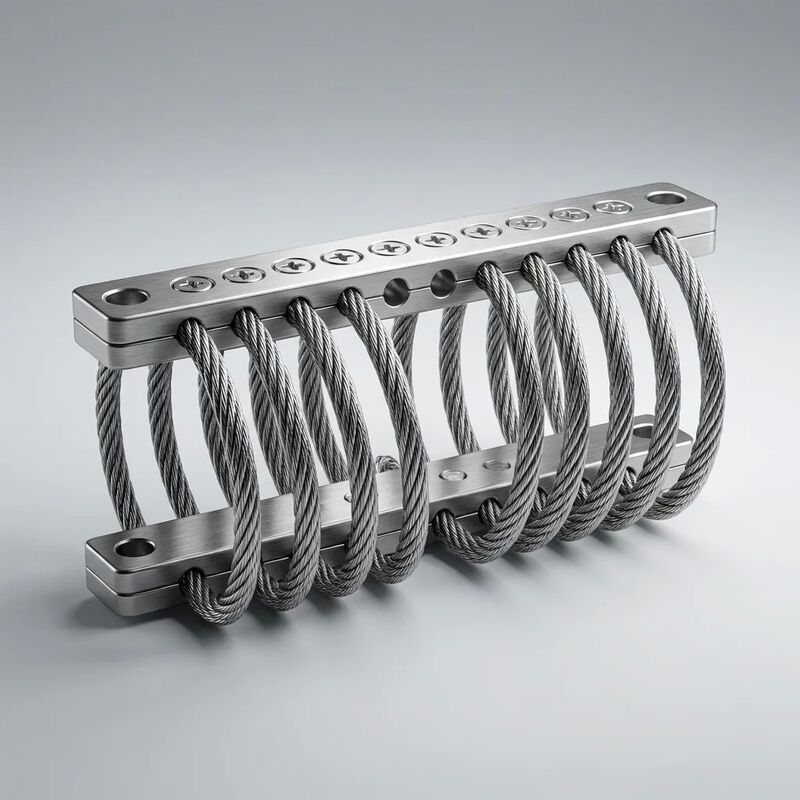

The JGX-0400D-31.5A by Xi'an Hoan Microwave exploits non-linear elasticity to deliver isolation performance unattainable with linear spring or rubber mounts. Its 4.0mm stainless steel 304 wire rope (7*19 construction, 8-coil symmetrical winding) is captured in aluminum alloy 6061-T6 bars with a D-type M10 threaded stud interface, providing a direct form-fit replacement path for aging cylindrical rubber isolators. Rated for 31.5 kg static compression load, the JGX-0400D-31.5A is supported by a 7-working-day rapid prototyping program for custom bar geometries, alternative load ratings, and non-standard mounting configurations.

Engineering Data & Dimensions

Understanding Non-Linear Elasticity — The Engineering Advantage

Linear isolators — coil springs, rubber cylinders, elastomeric pads — follow Hooke's Law: force is proportional to displacement (F = kx). This forces a painful engineering compromise: a soft spring isolates vibration well but deflects excessively under shock; a stiff spring limits shock deflection but transmits vibration directly into the structure.

The JGX-0400D-31.5A's 8-coil helical wire rope geometry produces a fundamentally different response — a progressive, amplitude-dependent stiffness that cannot be described by a single spring constant:

Region I: Elastic Flexure (0–2 mm, ~10 N/mm)

At low amplitudes typical of continuous rotating equipment vibration (0.1–2.0 mm peak-to-peak), individual wire strands bend elastically within their linear range. Stiffness is low — approximately 10 N/mm in compression — yielding effective isolation with > 90% attenuation above 20 Hz excitation. This is the regime where the isolator spends > 99% of its operating life, protecting precision equipment from subtle but damaging high-frequency vibration.

Region II: Coulomb Engagement (2–6 mm, ~22 N/mm)

As amplitude increases into the moderate shock range, strand-to-strand relative displacement grows. The 133 individual wire filaments across the 7*19 cable cross-section begin sliding against each other, engaging the Coulomb friction damping mechanism. Effective damping ratio increases from 0.10 to 0.25, dissipating impact energy through distributed micro-scale friction. Stiffness rises to approximately 22 N/mm — enough to resist further displacement without transmitting excessive force to the isolated equipment.

Region III: Geometric Hardening (6–10+ mm, ~50 N/mm asymptotic)

At high amplitudes approaching the geometric limits of the helical winding, the wire rope's effective radius decreases and the bending moment arm shortens. Stiffness increases sharply to approximately 50 N/mm — a 5* multiplier over the low-amplitude rate — functioning as a progressive, non-impact soft stop. The equipment decelerates smoothly over the final 4 mm of travel rather than slamming into a rigid hard stop. Maximum deceleration is typically ≤ 15 G even under 30 G input pulses.

Drop-in Replacement — Mechanical Interchange Data

The JGX-0400D-31.5A is engineered for direct dimensional interchange with widely deployed cylindrical rubber isolator form factors. Key mechanical compatibility data:

No chassis modification, no drilling, no welding required. In most cases, the JGX-0400D-31.5A bolts directly into the existing mounting points vacated by failed rubber isolators. If the thread pitch differs (e.g., M12 rubber mount to M10 isolator), simple thread adapter bushings — supplied by Hoan at no additional cost for evaluation orders — provide a 100% mechanical solution without equipment modification.

7-Day Rapid Prototyping Program

For applications requiring a non-standard configuration — different bar geometry, alternative load rating, specific envelope constraints, or integration with proprietary mounting interfaces — Xi'an Hoan offers a rapid prototyping service with 5–7 working day turnaround:

1. Day 1: Customer submits dimensional requirements, load data, and mounting interface specifications. Hoan application engineers review and confirm feasibility within 24 hours.
2. Day 2–3: 3D CAD model generated (STEP and IGES formats provided). Customer reviews and approves the virtual prototype — modifications are free at this stage.
3. Day 4–6: CNC machining of custom aluminum alloy 6061-T6 retaining bars. Wire rope winding to specified coil count and pitch. Assembly and initial dimensional verification.
4. Day 7: 100% load-deflection curve verification on servo-hydraulic test stand. Visual inspection, packaging, and express shipment. Full test report and material certificates included.

Prototype quantities (1–20 units) carry zero tooling charges — all bar machining is performed on standard CNC equipment using the same processes that will be applied in volume production. This eliminates the tooling amortization barrier that typically makes small-quantity custom isolation solutions prohibitively expensive.

Packaging Specifications

• Individual Unit Pack: VCI anti-corrosion bag + die-cut PE foam insert + Hoan branded single-unit carton (210 * 95 * 65 mm, approx. 0.85 kg gross)
• Master Carton (20 units): Double-wall B-flute corrugated, 440 * 220 * 350 mm, approx. 16.5 kg gross
• Pallet Load (EUR 1200*800): 24 master cartons = 480 units, approx. 420 kg gross, stretch-wrapped with corner protectors
• Documentation Package: EN 10204 3.1 material certificate (SS304 wire + Al 6061-T6 bar), dimensional inspection report, load-deflection curve per serial number, certificate of conformance

Application Integration Examples

• Pump Skid Retrofit: A 6-pump chemical transfer station replaced 24 degraded neoprene cylindrical mounts (lifetime: 18 months) with JGX-0400D-31.5A isolators. M10 studs matched existing mounting plates directly. No rework required. After 5+ years, isolators show zero degradation — eliminating a 2-day annual plant shutdown for mount inspection and replacement.
• Mobile Generator OEM Integration: A trailer-mounted diesel generator manufacturer switched mid-production from M12 rubber sandwich mounts to JGX-0400D-31.5A isolators. Simple M12-to-M10 adapter bushings provided a bolt-on transition with no enclosure redesign. Shock survivability during road transport improved from 10 G to 30+ G rating, reducing warranty claims by over 60%.
• Custom HVAC Chiller Isolation: A data center required vibration isolation for 6 rooftop chiller units with non-standard frame rail spacing. Hoan's rapid prototyping team designed custom-length aluminum bars (same 6061-T6 material, same M10 studs) within 6 working days. Prototypes were validated on-site within 2 weeks of initial inquiry — from concept to operational installation in under one month.

About Xi'an Hoan Microwave Co. Ltd.

Headquartered in Xi'an, Shaanxi Province — a major aerospace and precision manufacturing hub — Xi'an Hoan has been a dedicated vibration isolation specialist since 2005. Our ISO 9001:2015 certified facility employs over 500 staff including 100+ R&D engineers. We maintain a comprehensive inventory of standard JGX series isolators for immediate shipment and a dedicated rapid prototyping cell for custom configurations. With exports to 35+ countries and a 24-hour technical inquiry response commitment, we are equipped to support your vibration isolation requirements from prototype evaluation through volume production.

Need a custom isolator configuration or ready to qualify the JGX-0400D-31.5A for your application? Contact Xi'an Hoan's application engineering team. Submit your load data and mounting specifications — we return a prototype proposal within 48 hours and ship evaluation units within 7 working days.
