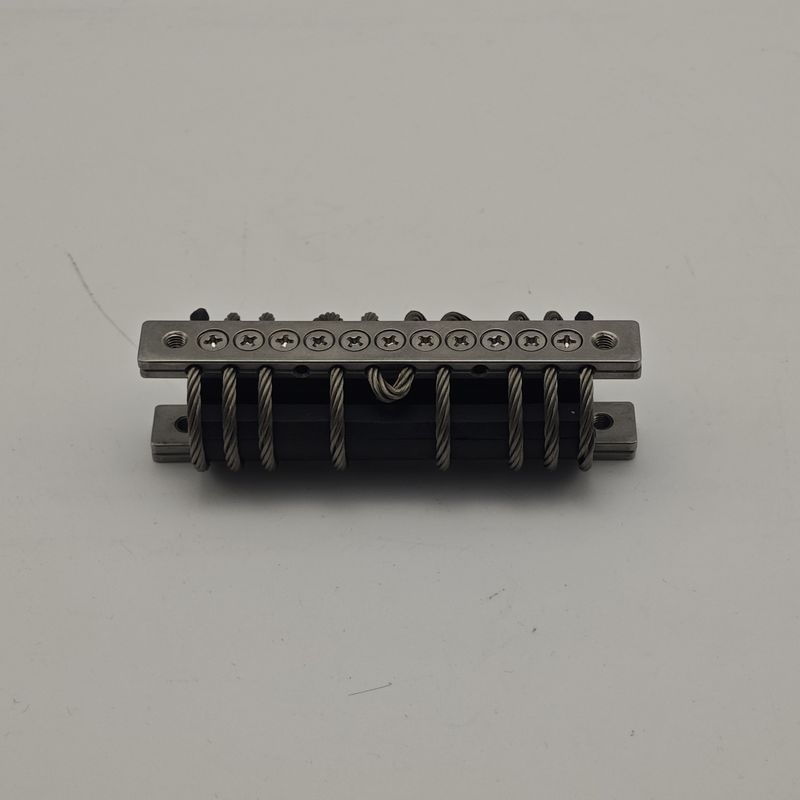

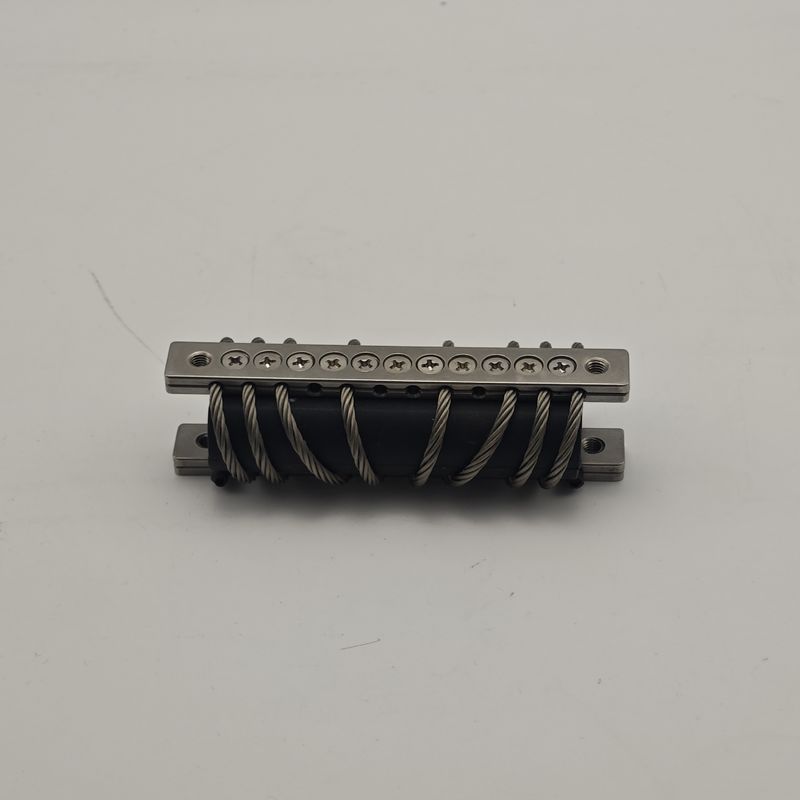

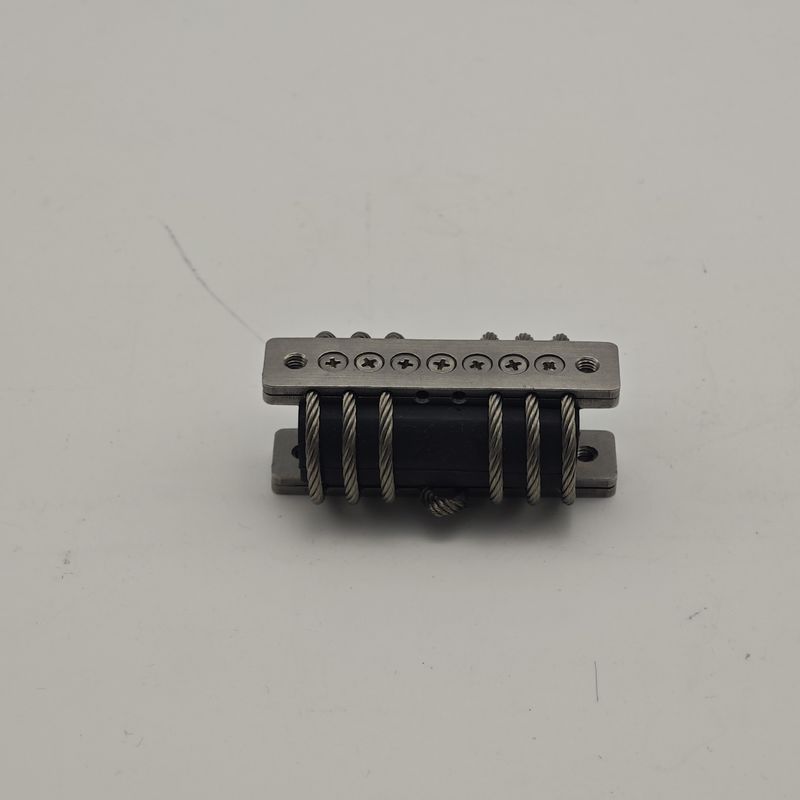

Name: Customized Wire Rope Vibration Isolator for Quiet Operation Stable Equipment Performance with Excellent Damping GX-20AN
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: GX-20A(N)
Availability: InStock

خونه > محصولات > محصولات سفارشی >

Customized Wire Rope Vibration Isolator for Quiet Operation Stable Equipment Performance with Excellent Damping GX-20AN

Quiet Operation Wire Rope Vibration Isolator,Stable Equipment Performance Vibration Isolator,Excellent Damping Performance Shock Absorber

Stable Equipment Performance Vibration Isolator

Excellent Damping Performance Shock Absorber

محل منبع:

چین

نام تجاری:

Hoan

شماره مدل:

GX-20A(N)

با ما تماس بگیرید

درخواست نقل قول

Customized Wire Rope Vibration Isolator for Quiet Operation Stable Equipment Performance with Excellent Damping GX-20AN

جزئیات محصول

مواد:

مواد مختلف موجود است

دمای سرویس:

1000 ℃ -1800

سفارشی:

بله

چاپ:

بله

شکل:

سفارشی، غیر سفارشی

مقاومت در برابر شوک حرارتی:

مقاومت در برابر شوک حرارتی خوب

اندازه:

قابل تنظیم

پایداری شیمیایی:

ثبات شیمیایی بسیار بالا

استفاده:

انواع غذاها، هدایا، لوازم التحریر

بازار یابی:

بازارهای اروپا و آمریکا

خدمات پس از فروش:

قابل تنظیم

کلمه کلیدی:

مواد آتش شکن

ضخامت:

0.15 میلی متر

روش پرداخت:

قابل تنظیم

برجسته کردن:

Quiet Operation Wire Rope Vibration Isolator,Stable Equipment Performance Vibration Isolator,Excellent Damping Performance Shock Absorber

Stable Equipment Performance Vibration Isolator

Excellent Damping Performance Shock Absorber

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش

شرایط پرداخت

MoneyGram ، Western Union ، T/T ، D/P ، D/A ، L/C

محصولات مرتبط

GX-50A(N) Customized Wire Rope Vibration Isolator with High Fatigue Strength and Thermal Shock Resistance for Long-lasting Durability

بهترین قیمت رو بدست بیار

Customized GX-40AN Wire Rope Vibration Isolator with 113mm*40mm Size 32.5±mm Thickness and 1000℃-1800℃ Service Temperature

بهترین قیمت رو بدست بیار

GX-30AN Wire Rope Vibration Isolator with Exceptional Environmental Adaptability, Corrosion Resistant and Good Thermal Shock Resistance

بهترین قیمت رو بدست بیار

Customized Wire Rope Vibration Isolator for Quiet Operation Stable Equipment Performance with Excellent Damping GX-20AN

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-29-88292913

حالا تماس بگیرید

توضیحات محصول

GX-N Series Wire Rope Vibration Isolators

Guardian of Quiet Operation - The Ideal Solution for Stable Equipment Performance

Persistent vibration is a hidden threat to precision equipment, causing loose screws, component wear, inaccurate measurements, and increased noise. Xi'an Hoan Microwave's GX-N Series wire rope vibration isolators effectively isolate harmful vibrations, ensuring quiet and stable equipment operation.

Key Features

Excellent damping performance through dry friction between wire rope strands
Dual-action vibration control: isolation through elastic deformation and energy dissipation via internal friction
Effective vibration isolation across wide frequency bands, especially medium and high frequencies
Significantly reduces operational vibration and structural noise in power equipment
Creates stable working platforms for electronic cabinets and precision instruments
Enhances equipment reliability and extends operational lifespan

Structural Dimension Diagram

Dimensions Table

Model	L(mm)	A±0.3	H±1.5	W±1.5	d
GX-10A(N)	55	49	21	26	M3-7H
GX-20A(N)	84	68	29	35	M5-7H
GX-30A(N)	113	97	32.5	40	M5-7H
GX-40A(N)	113	97	32.5	40	M5-7H
GX-50A(N)	113	97	33	40	M5-7H
GX-60A(N)	133	117	31	40	M5-7H

Performance Characteristics

Vibration Curve

Impact Curve

Technical Specifications

Technical Parameter	Specification
Nominal Load (Pz)	Downward Pressure
Resonance Magnification	≤4
High Vibrating Efficiency	≥95%
Working Temperature	-55°C to +120°C
Shock (Ks)	30g/6ms
Peak Response G	≤3.5km/s²
Vibration (Kv)	Complies with National Military Standard GJB150-16

The GX-N Series has become the trusted vibration isolation solution for numerous leading enterprises across industries, ensuring equipment operates efficiently in tranquility.
