JGX-0480 Series

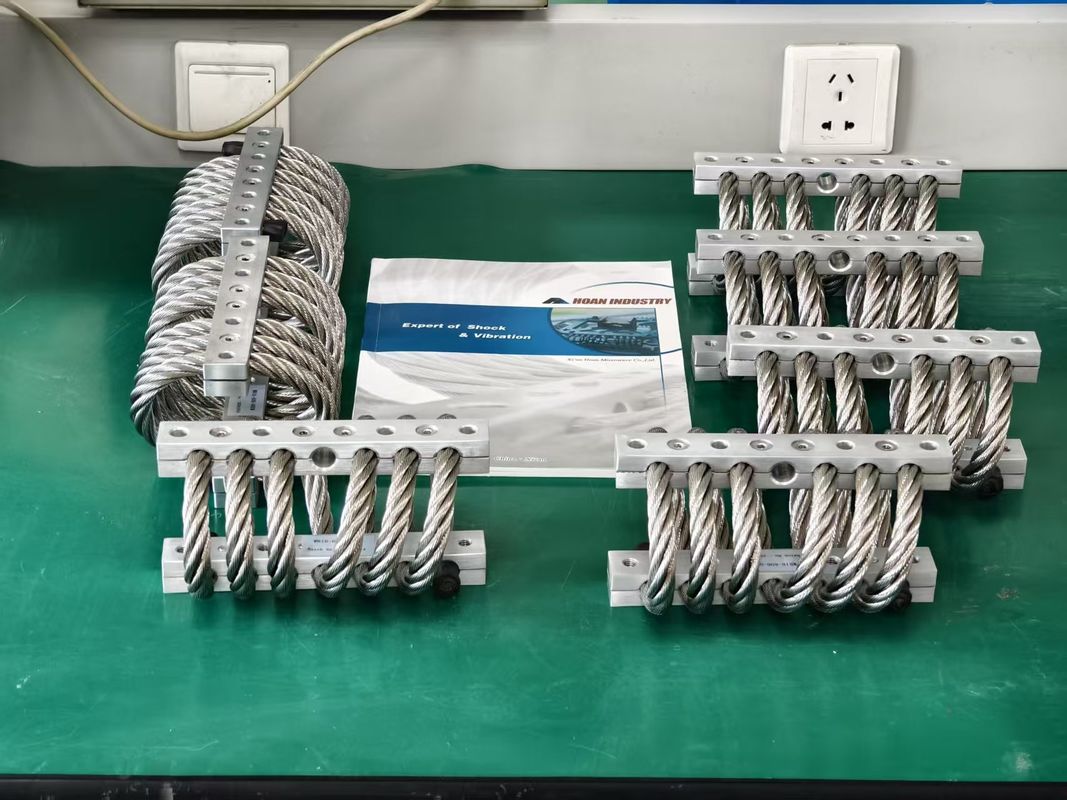

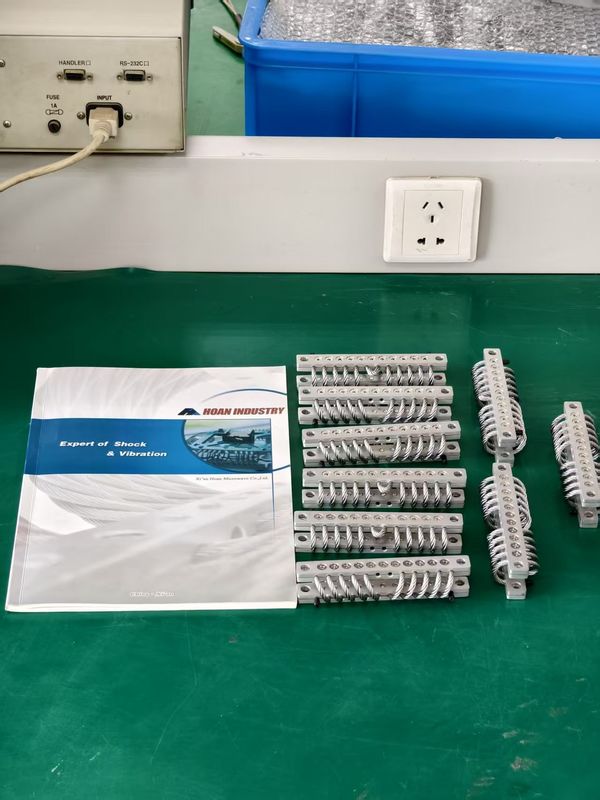

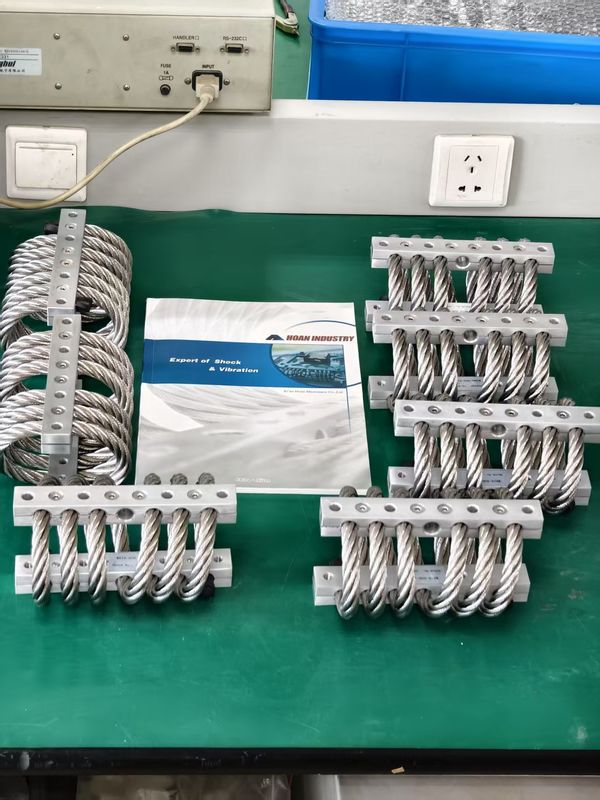

The JGX-0480D-18A steel wire rope isolator is a professional shock-absorbing device specially designed for high-vibration environments. It uses high-strength aviation-grade steel wires braided into a spiral spring structure, achieving efficient isolation and energy dissipation of low-frequency vibrations and impact loads through friction damping and elastic deformation between metal wires. Its core advantage lies in the three-dimensional omnidirectional shock absorption performance: it can resist vibrations in both horizontal and vertical directions, suitable for scenarios such as precision instruments, industrial equipment, and building structures, especially in earthquake-prone areas or heavy machinery operation environments.
The product design balances stability and durability. The outer layer is treated with anti-corrosion coating, adapting to complex working conditions such as humidity, dust, and extreme temperatures, with a service life of over 10 years. It features flexible installation methods, supporting bolt fixing or hoisting, compatible with various equipment interfaces, and requiring no additional maintenance, significantly reducing long-term use costs. Tested by authoritative institutions, this isolator can reduce vibration transmission rate by more than 85%, effectively protecting equipment accuracy and structural safety.
Whether used for shock absorption of data center servers, protection of hospital precision instruments, or seismic reinforcement of bridge buildings, JGX-0480D-18A has become a preferred solution in the engineering field with its reliable performance, providing continuous and stable vibration control for various facilities.
Mounting Options
SIZE PARAMETER:
| Model |
“H”±3.30 |
“W” |
Unit weight |
Mounting options |
Thru hole
(mm)
|
Thread
(mm)
|
C'sink(°) |
| JGX-0480A-75A |
30 |
36 |
0.304 |
D |
∅6.9±0.13 |
M6×1.0 |
90 |
| JGX-0480A-72A |
33 |
38 |
0.32 |
| JGX-0480A-61A |
36 |
41 |
0.336 |
B,D,E |
| JGX-0480A-59A |
38 |
43 |
0.336 |
A,B,C,D,E,S |
| JGX-0480A-52A |
41 |
46 |
0.352 |
| JGX-0480A-50A |
43 |
48 |
0.4 |
| JGX-0480A-37A |
51 |
58 |
0.416 |
| JGX-0480A-24A |
54 |
75 |
0.432 |
| JGX-0480A-18A |
62 |
88 |
0.448 |
| JGX-0480A-12A |
81 |
107 |
0.464 |
Technical Data Sheet:
Vertical load
| No. |
Model |
Maximum static load(N) |
Maximum deformation(mm) |
Vibration stiffness
(KN/m)
|
Impact stiffness
(KN/m)
|
| 1 |
JGX-0480A-75A |
75 |
8.6 |
578 |
363 |
| 2 |
JGX-0480A-72A |
72 |
11.7 |
455 |
252 |
| 3 |
JGX-0480A-61A |
61 |
13.7 |
347 |
189 |
| 4 |
JGX-0480A-59A |
59 |
15.7 |
301 |
152 |
| 5 |
JGX-0480A-52A |
52 |
18.8 |
244 |
117 |
| 6 |
JGX-0480A-50A |
50 |
20.8 |
212 |
96 |
| 7 |
JGX-0480A-37A |
37 |
26.9 |
136 |
58 |
| 8 |
JGX-0480A-24A |
24 |
29.5 |
82 |
33 |
| 9 |
JGX-0480A-18A |
18 |
36.6 |
54 |
21 |
| 10 |
JGX-0480A-12A |
12 |
52.8 |
29 |
10 |
45 ° directional load:
| No. |
Model |
Maximum static load(N) |
Maximum deformation(mm) |
Vibration stiffness(KN/m) |
Impact stiffness
(KN/m)
|
| 1 |
JGX-0480A-75A |
54.5 |
12.7 |
341 |
179 |
| 2 |
JGX-0480A-72A |
52.2 |
16.8 |
258 |
126 |
| 3 |
JGX-0480A-61A |
44.1 |
19.8 |
197 |
93 |
| 4 |
JGX-0480A-59A |
41.7 |
22.9 |
172 |
75 |
| 5 |
JGX-0480A-52A |
38.1 |
26.9 |
141 |
58 |
| 6 |
JGX-0480A-50A |
35.7 |
29 |
123 |
49 |
| 7 |
JGX-0480A-37A |
26.5 |
38.1 |
77 |
28 |
| 8 |
JGX-0480A-24A |
18.1 |
41.7 |
49 |
18 |
| 9 |
JGX-0480A-18A |
13.9 |
51.3 |
33 |
11 |
| 10 |
JGX-0480A-12A |
9.3 |
74.7 |
18 |
5.3 |
Lateral load:
| No. |
Model |
Maximum static load(N) |
Maximum static load(N) |
Vibration stiffness(KN/m) |
Impact stiffness
(KN/m)
|
| 1 |
JGX-0480A-75A |
36.3 |
8.6 |
224 |
224 |
| 2 |
JGX-0480A-72A |
36.3 |
11.7 |
156 |
156 |
| 3 |
JGX-0480A-61A |
34.1 |
14.7 |
112 |
112 |
| 4 |
JGX-0480A-59A |
31.7 |
16.8 |
93 |
93 |
| 5 |
JGX-0480A-52A |
29.5 |
19.8 |
70 |
70 |
| 6 |
JGX-0480A-50A |
27.2 |
21.8 |
60 |
60 |
| 7 |
JGX-0480A-37A |
20.4 |
27.9 |
35 |
35 |
| 8 |
JGX-0480A-24A |
5.9 |
31.0 |
11 |
11 |
| 9 |
JGX-0480A-18A |
4.1 |
38.1 |
5.3 |
5.3 |
| 10 |
JGX-0480A-12A |
2.2 |
55.9 |
2.3 |
2.3 |
