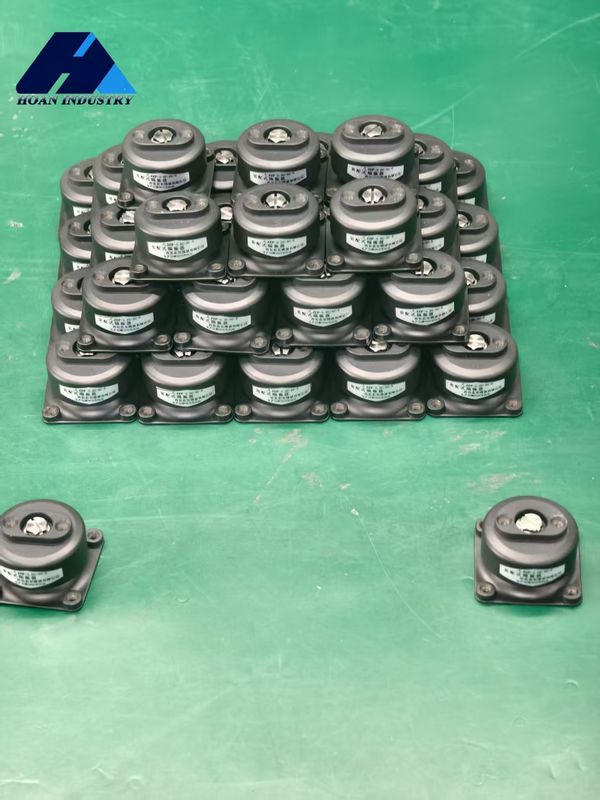

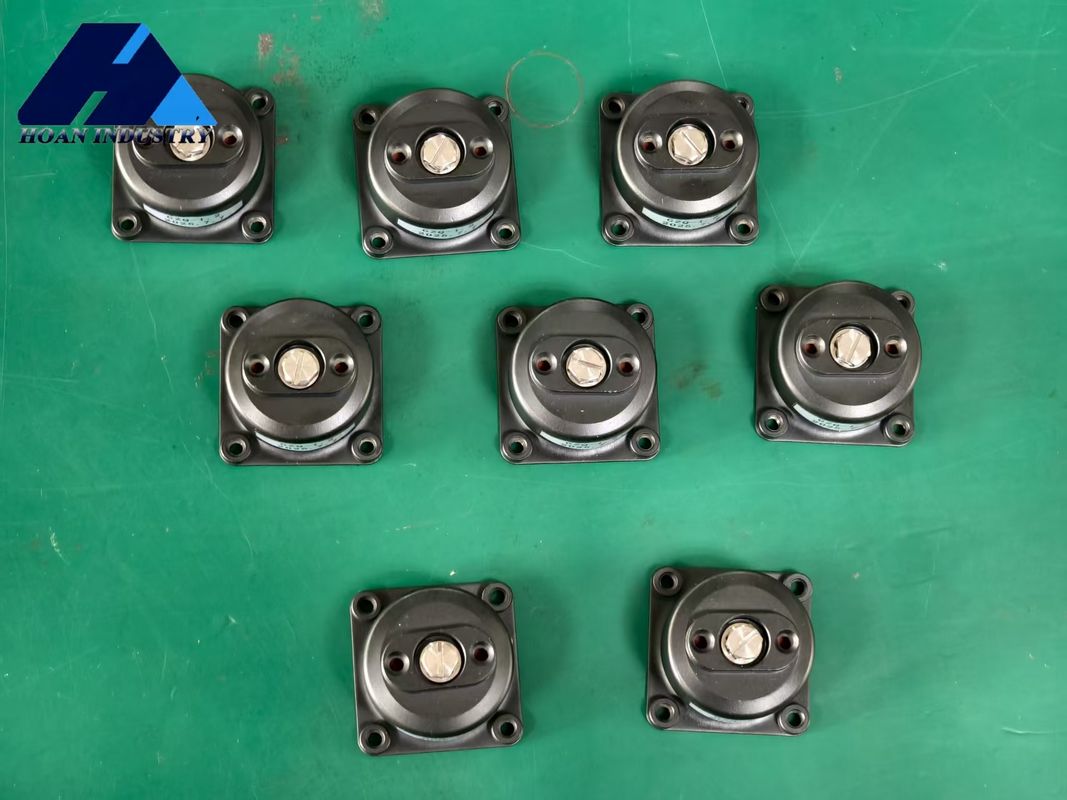

Name: JZP-5.5B-SC Rubber Shock Absorber with Vibration Frequency 5-50Hz and Max Static Load 5.5Kg in 3-24 Inches Length
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JZP-5.5B-SC
Availability: InStock

خونه > محصولات > ضربه گیر لاستیکی >

JZP-5.5B-SC Rubber Shock Absorber with Vibration Frequency 5-50Hz and Max Static Load 5.5Kg in 3-24 Inches Length

Vibration Frequency 5-50Hz Rubber Shock Absorber,Max Static Load 5.5Kg Vibration Isolator,3-24 Inches Length JZP Series

Max Static Load 5.5Kg Vibration Isolator

3-24 Inches Length JZP Series

محل منبع:

چین

نام تجاری:

Hoan

شماره مدل:

JZP-5.5B-SC

با ما تماس بگیرید

درخواست نقل قول

JZP-5.5B-SC Rubber Shock Absorber with Vibration Frequency 5-50Hz and Max Static Load 5.5Kg in 3-24 Inches Length

جزئیات محصول

مقاومت در برابر آب و هوا:

عالی

فرکانس ارتعاش:

5-50 هرتز

نصب و راه اندازی:

آسان برای نصب

کاربرد:

خودرو، ماشین آلات، موتور

صنایع قابل اجرا:

انرژی و معدن

مقاومت:

مواد شیمیایی، گرما و آب و هوا

فرکانس انزوایی:

5 هرتز

خصوصیات:

الاستیک خوب، مقاومت در برابر سایش

طول:

3-24 اینچ

انعطاف پذیری:

انعطاف پذیر

ویژگی:

انزوای ارتعاش

حداکثر بار استاتیک:

5.5 کیلوگرم

برجسته کردن:

Vibration Frequency 5-50Hz Rubber Shock Absorber,Max Static Load 5.5Kg Vibration Isolator,3-24 Inches Length JZP Series

Max Static Load 5.5Kg Vibration Isolator

3-24 Inches Length JZP Series

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش

شرایط پرداخت

L/C، D/A، D/P، T/T، وسترن یونیون، مانی گرام

محصولات مرتبط

JZP-5.5B-SC Rubber Shock Absorber with Vibration Frequency 5-50Hz and Max Static Load 5.5Kg in 3-24 Inches Length

بهترین قیمت رو بدست بیار

JZP-5.0B-SC Rubber Shock Absorber with 10Hz to 100Hz Frequency Range High Vibration Resistance for On-Vehicle Efficiency Validation New Product 2025

بهترین قیمت رو بدست بیار

JZP-4.0B-SC Rubber Shock Absorber with M5 Mounting Holes 30mm Height and High Pressure Resistance for Vibration Isolation

بهترین قیمت رو بدست بیار

JZP-3.5B-SC Modular Rubber Shock Absorber with 5-6KG Load Range 1:2 Compression Ratio and 40g/11ms Shock Resistance

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-29-88292913

حالا تماس بگیرید

توضیحات محصول

JZP-5.5B-SC Rubber Shock Absorbers for Easy Installation and Maintenance with User-Centric Design

JZP-B-SC Series

Easy Installation, Hassle-Free Maintenance - User-Centric Design of the JZP Series Vibration Isolators

A high-quality engineering product should not only deliver outstanding performance but also offer a superior user experience. When designing the JZP Series On-Vehicle Modular Vibration Isolators, Xi'an Hoan Microwave Co., Ltd. fully considered the convenience of installation, commissioning, and maintenance, striving to make advanced technology simple and user-friendly.

The Essence of "Modular" Design

The "modular" feature of the JZP Series means it typically comes as a complete, standardized unit. Users do not need to mix damping materials on-site or perform complex structural assembly. In most cases, only common tools and bolt connections are required to firmly mount equipment on the vehicle base via the JZP Vibration Isolators. This significantly lowers the technical threshold and time cost of installation, while avoiding performance degradation caused by improper installation.

Visualization and Maintainability

Many products in the JZP Series are designed with intuitive markings and error-proof structures to ensure correct installation orientation. Their structure is usually easy to inspect, allowing users to visually check for obvious aging or damage to elastic components. For applications requiring regular inspection or replacement, the modular design enables quick and cost-effective replacement of individual vibration isolators--no need to disassemble the entire equipment.

Dimension Parameter Table

Model	D (mm)	H±1 (mm)	h (mm)	A±0.2 (mm)	B (mm)	d	d2	R	B (mm)
JZP-B-SC	46	30	21	40	50	M4	∅5.5	5	22

Technical Parameter Table

Model	Nominal Load (kg)	Static Displacement (mm)	Working Temperature (℃)	Resonance Frequency (Hz)	Impact Test	Valid Period (year)
JZP-1.0B-SC	1.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-1.5B-SC	1.5
JZP-2.0B-SC	2.0
JZP-2.5B-SC	2.5
JZP-3.0B-SC	3.0
JZP-3.5B-SC	3.5
JZP-4.0B-SC	4.0
JZP-5.0B-SC	5.0
JZP-5.5B-SC	5.5
JZP-6.0B-SC	6.0

Vibration and Impact Curve of JZP-B-SC Series

Vibration

Impact
