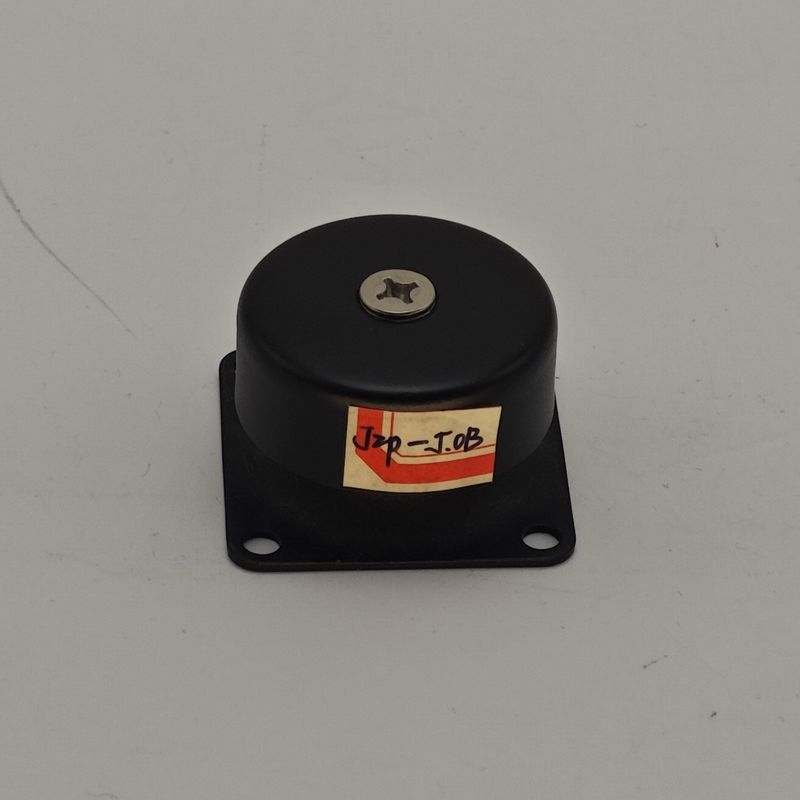

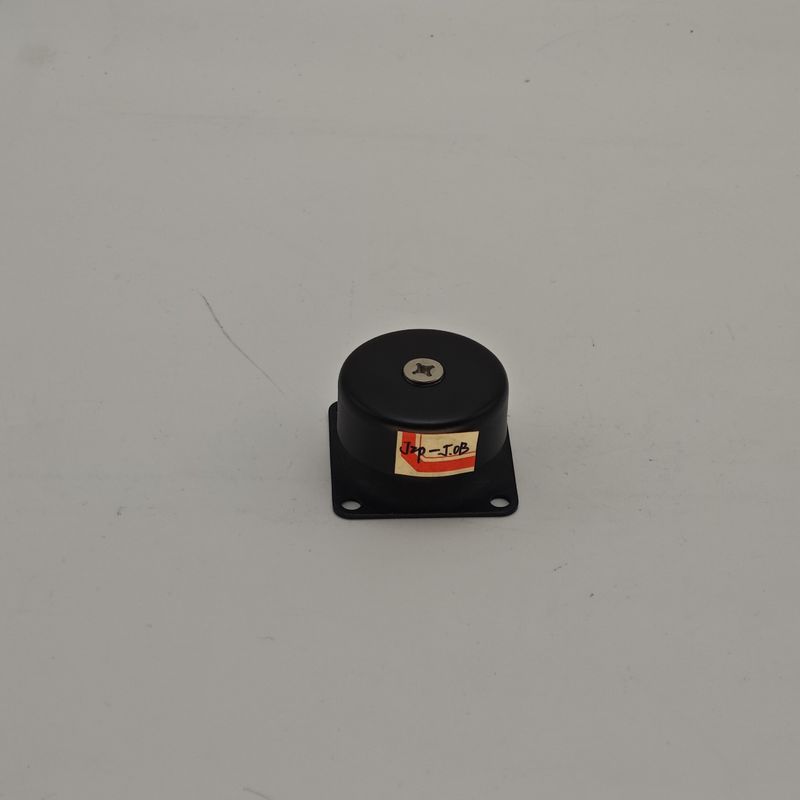

Name: JZP-5.0B-SC Rubber Shock Absorber with 10Hz to 100Hz Frequency Range High Vibration Resistance for On-Vehicle Efficiency Validation New Product 2025
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JZP-5.0B-SC
Availability: InStock

خونه > محصولات > ضربه گیر لاستیکی >

JZP-5.0B-SC Rubber Shock Absorber with 10Hz to 100Hz Frequency Range High Vibration Resistance for On-Vehicle Efficiency Validation New Product 2025

10Hz to 100Hz Frequency Range Rubber Shock Absorber,High Vibration Resistance Vibration Isolator,New Product 2025 JZP-B-SC Series

High Vibration Resistance Vibration Isolator

New Product 2025 JZP-B-SC Series

محل منبع:

چین

نام تجاری:

Hoan

شماره مدل:

JZP-5.0B-SC

با ما تماس بگیرید

درخواست نقل قول

JZP-5.0B-SC Rubber Shock Absorber with 10Hz to 100Hz Frequency Range High Vibration Resistance for On-Vehicle Efficiency Validation New Product 2025

جزئیات محصول

دامنه فرکانس ارتعاش:

10 هرتز تا 100 هرتز

بندر:

xi'an یا مشخص شده

خدمات پس از گارانتی:

پشتیبانی آنلاین

عمل:

ضد شوک

مقاومت در برابر ارتعاش:

بالا

نوع بازاریابی:

محصول جدید 2025

مشخصه:

فرکانس کاری گسترده، طول عمر طولانی

OEM:

بله

نوع نصب:

نخ دار

استفاده:

جذب شوک و ارتعاش

دمای کاری:

-55 ~ +120

رنگ:

مشکی

هزینه:

مقرون به صرفه

برجسته کردن:

10Hz to 100Hz Frequency Range Rubber Shock Absorber,High Vibration Resistance Vibration Isolator,New Product 2025 JZP-B-SC Series

High Vibration Resistance Vibration Isolator

New Product 2025 JZP-B-SC Series

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش

شرایط پرداخت

L/C ، D/A ، D/P ، Western Union ، T/T ، MoneyGram

محصولات مرتبط

JZP-5.5B-SC Rubber Shock Absorber with Vibration Frequency 5-50Hz and Max Static Load 5.5Kg in 3-24 Inches Length

بهترین قیمت رو بدست بیار

JZP-5.0B-SC Rubber Shock Absorber with 10Hz to 100Hz Frequency Range High Vibration Resistance for On-Vehicle Efficiency Validation New Product 2025

بهترین قیمت رو بدست بیار

JZP-4.0B-SC Rubber Shock Absorber with M5 Mounting Holes 30mm Height and High Pressure Resistance for Vibration Isolation

بهترین قیمت رو بدست بیار

JZP-3.5B-SC Modular Rubber Shock Absorber with 5-6KG Load Range 1:2 Compression Ratio and 40g/11ms Shock Resistance

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-29-88292913

حالا تماس بگیرید

توضیحات محصول

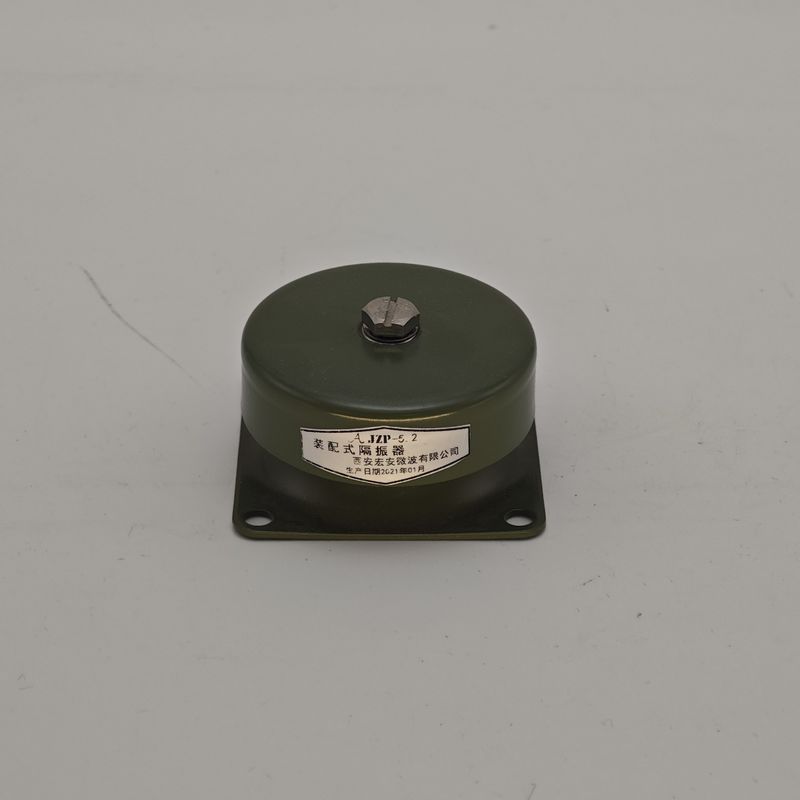

JZP-5.0B-SC Vibration Isolators - Tested Rubber Shock Absorbers for On-Vehicle Efficiency Validation

JZP-B-SC Series

From Lab to Road: Rigorous Testing and Quality Validation of the JZP Series Vibration Isolators

The reliability of a vibration isolator's performance cannot be based solely on theoretical calculations—it must withstand rigorous practical testing. Xi'an Hoan Microwave Co., Ltd. maintains a comprehensive testing and validation system for the JZP Series On-Vehicle Modular Vibration Isolators, from laboratory evaluations to real-vehicle trials, ensuring every product meets the highest standards.

Precise Evaluation in Laboratory Environments

During development, JZP Series prototypes undergo professional vibration testing:

Sinusoidal sweep frequency tests determine natural frequency and transmissibility curves
Random vibration tests simulate real road conditions to verify isolation efficiency
Shock tests evaluate ultimate load-bearing capacity and buffering performance

Environmental Adaptability Tests

The JZP Series undergoes extreme condition testing to ensure performance reliability:

High-low temperature alternating tests
Damp-heat resistance tests
Salt spray corrosion tests

Real-Vehicle Road Tests

Final validation comes from actual vehicle performance testing across diverse road conditions, with acceleration sensors collecting vibration data to demonstrate the JZP Series' superior isolation capabilities.

Dimension Parameters

Model	D (mm)	H±1 (mm)	h (mm)	A±0.2 (mm)	B (mm)	d	d2	R	B (mm)
JZP-B-SC	46	30	21	40	50	M4	∅5.5	5	22

Technical Parameters

Model	Nominal Load (kg)	Static Displacement (mm)	Working Temperature (℃)	Resonance Frequency (Hz)	Impact Test	Valid Period (year)
JZP-1.0B-SC	1.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-1.5B-SC	1.5	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-2.0B-SC	2.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-2.5B-SC	2.5	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-3.0B-SC	3.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-3.5B-SC	3.5	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-4.0B-SC	4.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-5.0B-SC	5.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-5.5B-SC	5.5	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-6.0B-SC	6.0	≤0.3	-45～+65	41.5±5	100G12times	8

Performance Curves

Vibration

Impact
