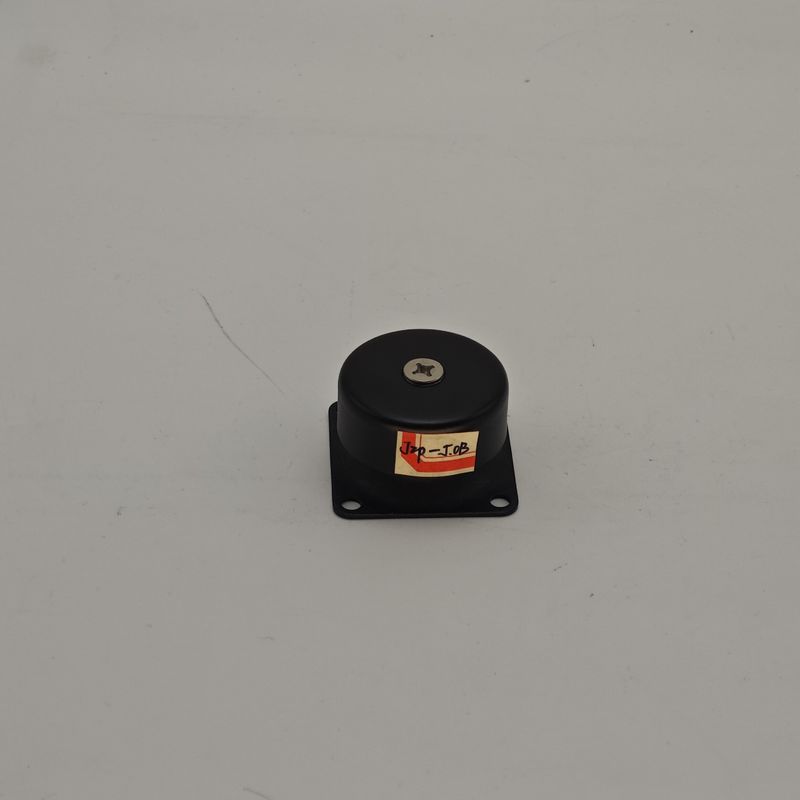

Name: JZP-1.5B-SC Vibration Isolator with 5-50Hz Vibration Frequency 10 Hz Natural Frequency and 1.5kg Maximum Load Capacity
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JZP-1.5B-SC
Availability: InStock

خونه > محصولات > ضربه گیر لاستیکی >

JZP-1.5B-SC Vibration Isolator with 5-50Hz Vibration Frequency 10 Hz Natural Frequency and 1.5kg Maximum Load Capacity

5-50Hz Vibration Frequency Vibration Isolator,10 Hz Natural Frequency Rubber Shock Absorber,1.5kg Maximum Load Capacity JZP Series Vibration Isolator

10 Hz Natural Frequency Rubber Shock Absorber

1.5kg Maximum Load Capacity JZP Series Vibration Isolator

محل منبع:

چین

نام تجاری:

Hoan

شماره مدل:

JZP-1.5B-SC

با ما تماس بگیرید

درخواست نقل قول

JZP-1.5B-SC Vibration Isolator with 5-50Hz Vibration Frequency 10 Hz Natural Frequency and 1.5kg Maximum Load Capacity

جزئیات محصول

ویژگی:

انزوای ارتعاش

دامنه فشار:

بالا

تابع:

کاهش صدا و محافظت از تجهیزات

بالا:

30 میلی متر

نوع جداسازی ارتعاش:

منفعل

قالب نقاشی:

DWG و PDF

بندر:

xi'an یا مشخص شده

کاهش ارتعاش:

بالا

فرکانس ارتعاش:

5-50 هرتز

صنایع قابل اجرا:

انرژی و معدن

اجزای اصلی:

موتور، دنده

مقاومت:

مقاومت در برابر سایش و پارگی

سبک طراحی:

صنعتی

بسامد طبیعی:

10 هرتز

حداکثر ظرفیت بار:

1.5 کیلوگرم

برجسته کردن:

5-50Hz Vibration Frequency Vibration Isolator,10 Hz Natural Frequency Rubber Shock Absorber,1.5kg Maximum Load Capacity JZP Series Vibration Isolator

10 Hz Natural Frequency Rubber Shock Absorber

1.5kg Maximum Load Capacity JZP Series Vibration Isolator

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش

شرایط پرداخت

L/C، D/A، D/P، T/T، وسترن یونیون، مانی گرام

محصولات مرتبط

JZP-5.5B-SC Rubber Shock Absorber with Vibration Frequency 5-50Hz and Max Static Load 5.5Kg in 3-24 Inches Length

بهترین قیمت رو بدست بیار

JZP-5.0B-SC Rubber Shock Absorber with 10Hz to 100Hz Frequency Range High Vibration Resistance for On-Vehicle Efficiency Validation New Product 2025

بهترین قیمت رو بدست بیار

JZP-4.0B-SC Rubber Shock Absorber with M5 Mounting Holes 30mm Height and High Pressure Resistance for Vibration Isolation

بهترین قیمت رو بدست بیار

JZP-3.5B-SC Modular Rubber Shock Absorber with 5-6KG Load Range 1:2 Compression Ratio and 40g/11ms Shock Resistance

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-29-88292913

حالا تماس بگیرید

توضیحات محصول

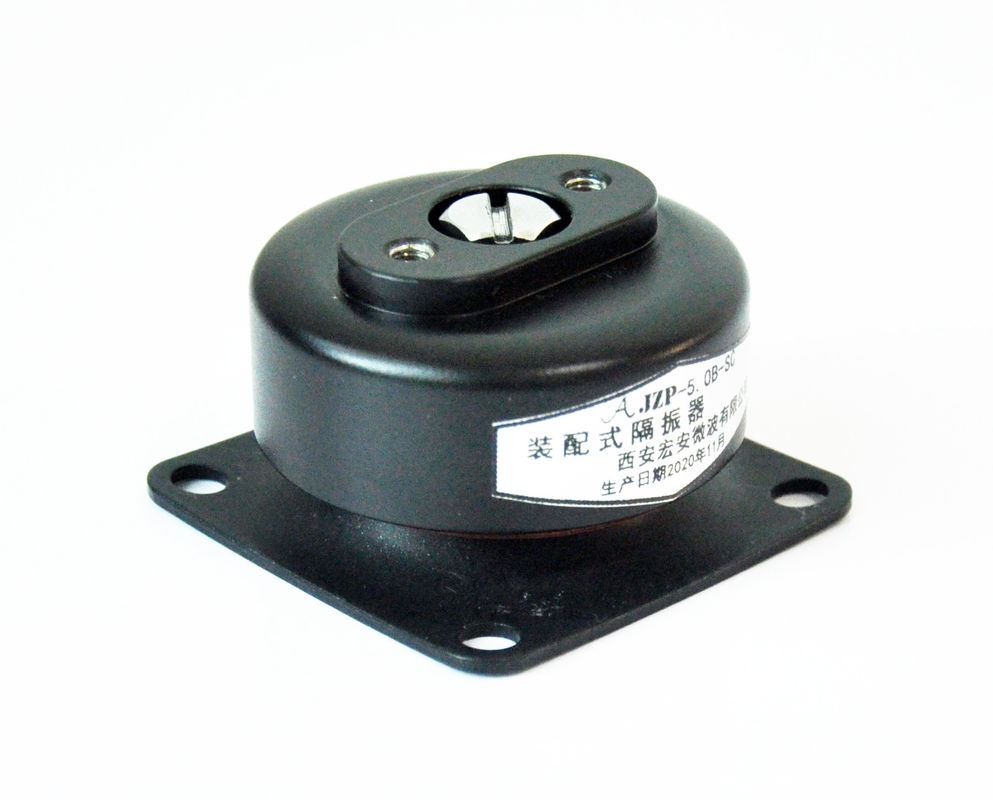

JZP-1.5B-SC Vibration Isolators

The Essential Component for Cost Reduction Efficiency Enhancement of On-Vehicle Equipment

JZP-B-SC Series

The Mobile Cornerstone of the Intelligent Era

Xi'an Hoan Microwave Co., Ltd.'s JZP Series On-Vehicle Modular Vibration Isolators are designed for seamless compatibility with intelligent on-vehicle systems in the 5G, IoT and AI technology era.

Key Features

Lightweight Design with High Load-Bearing Capacity: Adapts to various intelligent devices from edge computing gateways to server clusters with load capacity ranging from tens to hundreds of kilograms.
Electromagnetic Compatibility (EMC): Special design at metal/non-metal junctions minimizes electromagnetic interference while maintaining proper grounding.
Easy Maintenance & Upgrade: Modular design enables quick equipment maintenance or replacement without removing the entire vibration isolation system.

Dimension Parameters

Model	D (mm)	H±1 (mm)	h (mm)	A±0.2 (mm)	B (mm)	d	d2	R	B (mm)
JZP-B-SC	46	30	21	40	50	M4	∅5.5	5	22

Technical Parameters

Model	Nominal Load (kg)	Static Displacement (mm)	Working Temperature (℃)	Resonance Frequency (Hz)	Impact Test	Valid Period (year)
JZP-1.0B-SC	1.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-1.5B-SC	1.5	Same as above
JZP-2.0B-SC	2.0	Same as above
JZP-2.5B-SC	2.5	Same as above
JZP-3.0B-SC	3.0	Same as above
JZP-3.5B-SC	3.5	Same as above
JZP-4.0B-SC	4.0	Same as above
JZP-5.0B-SC	5.0	Same as above
JZP-5.5B-SC	5.5	Same as above
JZP-6.0B-SC	6.0	Same as above

Performance Curves

Vibration

Impact

The JZP Series Vibration Isolators serve as the reliable bridge connecting traditional mechanical protection with modern intelligent equipment requirements.
