JZP-13.5-SC-SC1 Rubber Shock Absorber with Damping Ratio 0.5 1 Year Warranty and 60mm Length for Sustainable Manufacturing

JZP-13.5-SC-SC1 Rubber Shock Absorber with Damping Ratio 0.5 1 Year Warranty and 60mm Length for Sustainable Manufacturing

Damping Ratio 0.5 Rubber Shock Absorber,1 Year Warranty Vibration Isolator,60mm Length Friction Damping Vibration Isolator

1 Year Warranty Vibration Isolator

60mm Length Friction Damping Vibration Isolator

محل منبع:

چین

نام تجاری:

Hoan

شماره مدل:

JZP-13.5-SC-SC1

با ما تماس بگیرید
درخواست نقل قول
جزئیات محصول
طول:
60 میلی متر
انزوای ارتعاش:
تا 90 ٪
کیفیت:
درجه صنعتی
سوراخ های نصب شده:
m5
نصب:
دیواری نصب شده
نوع جداسازی ارتعاش:
منفعل
نسبت میرایی:
0.5
ضمانت:
1 سال
مقاومت:
مواد شیمیایی، گرما و آب و هوا
مقاومت دما:
می تواند در برابر درجه حرارت بالا و پایین مقاومت کند
سفتی محوری:
50n/mm
نوع نصب:
نخ دار
پس از خدمات گارانتی:
پشتیبانی آنلاین
برجسته کردن:

Damping Ratio 0.5 Rubber Shock Absorber,1 Year Warranty Vibration Isolator,60mm Length Friction Damping Vibration Isolator

,

1 Year Warranty Vibration Isolator

,

60mm Length Friction Damping Vibration Isolator

شرایط پرداخت و حمل و نقل
مقدار حداقل تعداد سفارش
4
شرایط پرداخت
MoneyGram ، Western Union ، T/T ، D/P ، D/A ، L/C
توضیحات محصول
Sustainable Manufacturing Made Easy with JZP-13.5-SC-SC1 Rubber Shock Absorber
JZP-SC-SC1 Series: The Eco-Friendly Vibration Isolation Solution

As green manufacturing becomes a global priority, industrial components must demonstrate environmental responsibility throughout their lifecycle. The JZP-SC-SC1 series friction damping vibration isolators from Xi'an Hoan Microwave combine exceptional durability with sustainable features including maintenance-free operation and zero pollution.

Key Environmental Benefits
  • Extended Service Life: Metal construction ensures durability that typically outlasts the equipment it protects, minimizing replacement waste
  • Zero Energy Consumption: Passive mechanical design eliminates electricity needs and prevents emissions during operation
  • Maintenance-Free Operation: Saves on lubricants, cleaning agents, and labor costs while reducing environmental impact
  • Pollution Prevention: No risk of hydraulic fluid leaks compared to conventional dampers
Dimension Specifications
JZP-13.5-SC-SC1 Rubber Shock Absorber with Damping Ratio 0.5 1 Year Warranty and 60mm Length for Sustainable Manufacturing 0
Model D (mm) H±1 (mm) h (mm) A±0.2 (mm) B (mm) d d2 R b (mm)
JZP-SC-SC1 60 36 24.5 50 60 M5 ∅5.5 5 28
Technical Parameters
Model Nominal Load (KG) Static Displacement (mm) Working Temperature (℃) Resonance Frequency (Hz) Impact Test Limited Period
JMZ-3.2-SC-SC1 3.2 ≤0.3 -45~+65 41.5±5 100g 12 times 8
JMZ-4.2-SC-SC14.2
JMZ-5.2-SC-SC15.2
JMZ-6.0-SC-SC16.0
JMZ-7.0-SC-SC17.0
JZP-7.5-SC-SC17.5
JZP-9.0-SC-SC19.0
JZP-10.5-SC-SC110.5
JZP-13.5-SC-SC113.5
JZP-15-SC-SC115

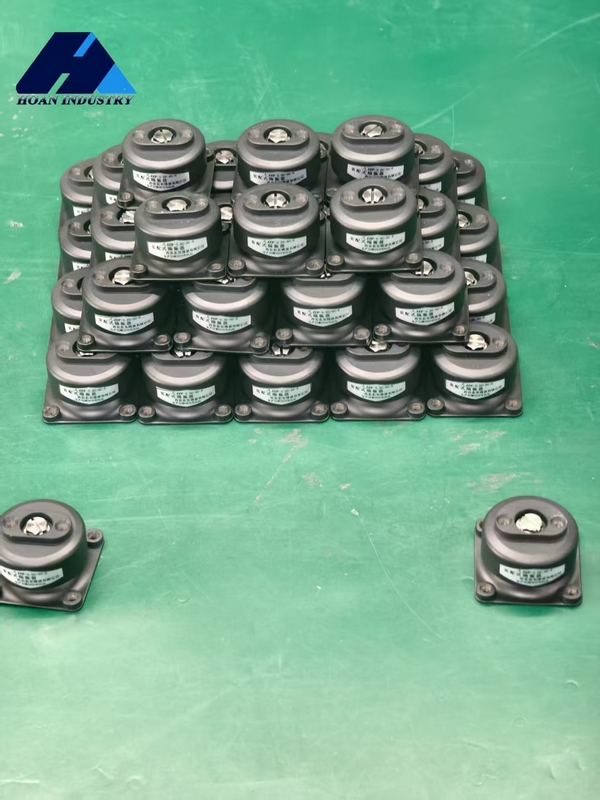

Customer Implementation
JZP-13.5-SC-SC1 Rubber Shock Absorber with Damping Ratio 0.5 1 Year Warranty and 60mm Length for Sustainable Manufacturing 1
