Name: JZP-7.5-SC-SC1 Friction Damping Vibration Isolator with Up to 90% Vibration Isolation M5 Mounting Thread Size and 50N/mm Axial Stiffness
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JZP-7.5-SC-SC1
Availability: InStock

خونه > محصولات > ضربه گیر لاستیکی >

JZP-7.5-SC-SC1 Friction Damping Vibration Isolator with Up to 90% Vibration Isolation M5 Mounting Thread Size and 50N/mm Axial Stiffness

Up to 90% Vibration Isolation Vibration Isolator,M5 Mounting Thread Size Rubber Shock Absorber,50N/mm Axial Stiffness Friction Damping Vibration Isolator

M5 Mounting Thread Size Rubber Shock Absorber

50N/mm Axial Stiffness Friction Damping Vibration Isolator

محل منبع:

چین

نام تجاری:

Hoan

شماره مدل:

JZP-7.5-SC-SC1

با ما تماس بگیرید

درخواست نقل قول

JZP-7.5-SC-SC1 Friction Damping Vibration Isolator with Up to 90% Vibration Isolation M5 Mounting Thread Size and 50N/mm Axial Stiffness

جزئیات محصول

عالی:

36 میلی متر

سبک طراحی:

صنعتی

گواهینامه:

ISO 9001: 2015

سفتی محوری:

50n/mm

نگهدار:

نگهداری کم مورد نیاز است

صدور گواهینامه:

ISO 9001

خصوصیات:

مقاوم در برابر حرارت، مقاوم در برابر پارگی

اندازه نخ نصب:

مادی:

لاستیک

انزوای ارتعاش:

تا 90 ٪

نوع:

نویز و تضعیف

ضمانت:

1 سال

سازگاری:

جهانی

برجسته کردن:

Up to 90% Vibration Isolation Vibration Isolator,M5 Mounting Thread Size Rubber Shock Absorber,50N/mm Axial Stiffness Friction Damping Vibration Isolator

M5 Mounting Thread Size Rubber Shock Absorber

50N/mm Axial Stiffness Friction Damping Vibration Isolator

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش

شرایط پرداخت

L/C ، D/A ، D/P ، T/T ، Western Union ، MoneyGram

محصولات مرتبط

JZP-13.5-SC-SC1 Rubber Shock Absorber with Damping Ratio 0.5 1 Year Warranty and 60mm Length for Sustainable Manufacturing

بهترین قیمت رو بدست بیار

JZP-10.5-SC-SC1 Rubber Shock Absorber with 10Hz to 100Hz Frequency Range and -55 to +120 Working Temperature for Horizontal/Vertical Installation

بهترین قیمت رو بدست بیار

JZP-9.0-SC-SC1 Rubber Shock Absorber with Temperature Resistance Up to 100 Degrees Celsius 50mm Width and 30 Hz Resonance Frequency for Industrial Machinery

بهترین قیمت رو بدست بیار

JZP-7.5-SC-SC1 Friction Damping Vibration Isolator with Up to 90% Vibration Isolation M5 Mounting Thread Size and 50N/mm Axial Stiffness

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-29-88292913

حالا تماس بگیرید

توضیحات محصول

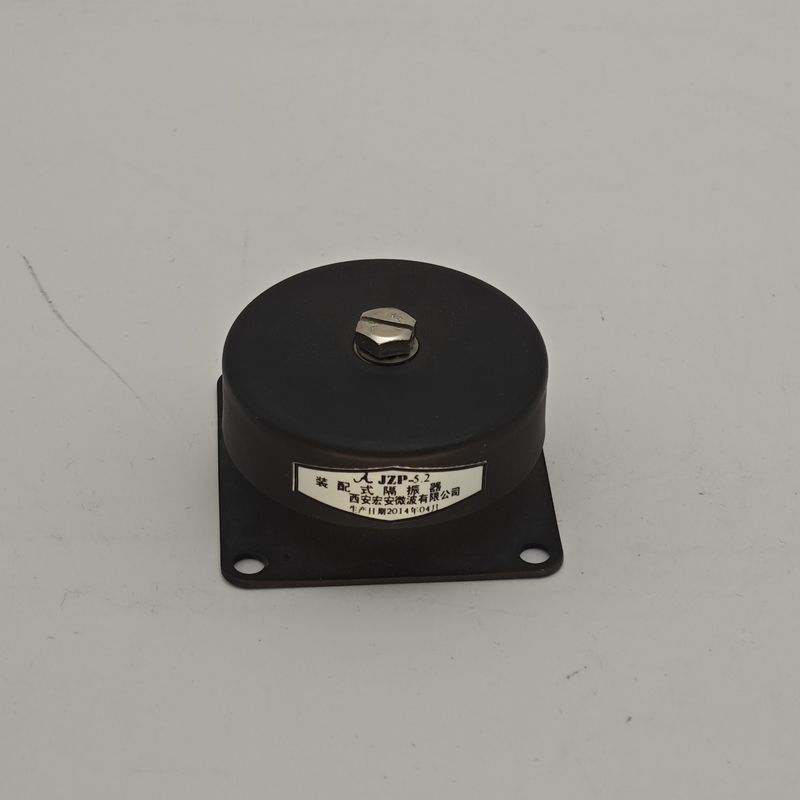

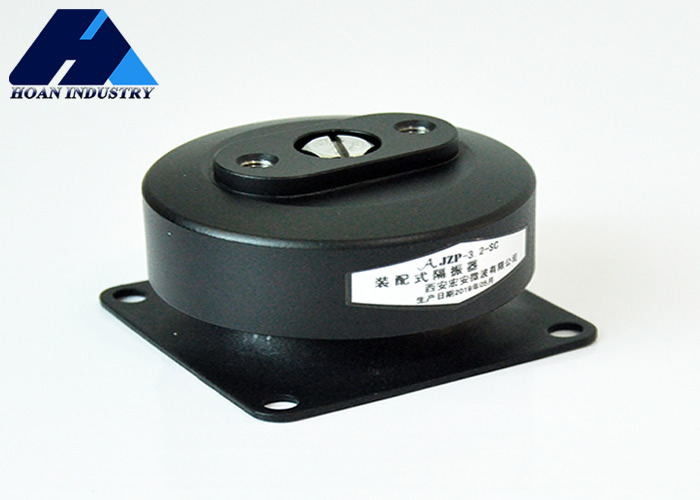

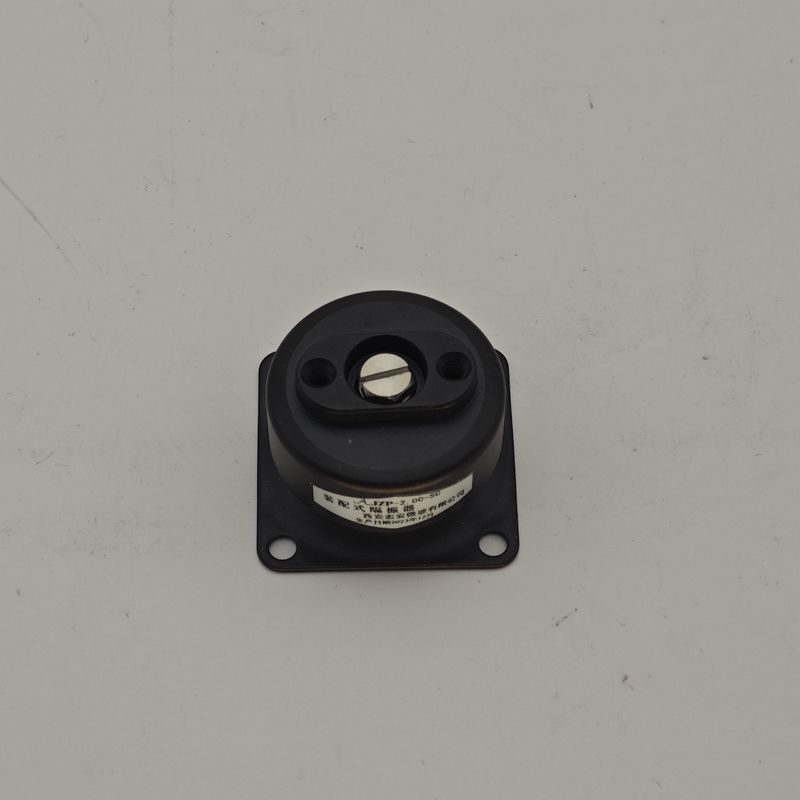

JZP-7.5-SC-SC1 Friction Damping Vibration Isolator

The Ideal Rubber Shock Absorber for Laboratory Equipment

JZP-SC-SC1 Series

Reshaping the "Quiet Foundation" for Precision Equipment: Xi'an Hoan JZP-sc-sc1 Vibration Isolator

In precision manufacturing and measurement environments where micron-level vibration control is critical, the JZP-sc-sc1 series friction damping vibration isolators provide an advanced solution. Designed specifically for high-end precision equipment, these isolators create a dynamically stable foundation that goes beyond basic vibration isolation.

Technical Advantages

Eliminates self-resonance and continuous oscillation common in traditional spring or airbag isolators
High-performance friction damping technology converts vibrational energy into thermal energy for dissipation
Exceptional performance with low-frequency vibrations and structural vibrations
"Immediate stabilization upon stopping" feature minimizes equipment wait time
Military-grade reliability integrated into design

Applications

Ideal for scanning electron microscopes (SEM), wafer inspection equipment, high-precision machine tools, and other applications requiring vibration-free environments.

Dimension Parameters

Model	D (mm)	H±1 (mm)	h (mm)	A±0.2 (mm)	B (mm)	d	d2	R	b (mm)
JZP-SC-SC1	60	36	24.5	50	60	M5	∅5.5	5	28

Technical Parameters

Model	Nominal Load (KG)	Static Displacement (mm)	Working Temperature (℃)	Resonance Frequency (Hz)	Impact Test	Limited Period
JMZ-3.2-SC-SC1	3.2	≤0.3	-45～+65	41.5±5	100g 12 times	8
JMZ-4.2-SC-SC1	4.2	≤0.3	-45～+65	41.5±5	100g 12 times	8
JMZ-5.2-SC-SC1	5.2	≤0.3	-45～+65	41.5±5	100g 12 times	8
JMZ-6.0-SC-SC1	6.0	≤0.3	-45～+65	41.5±5	100g 12 times	8
JMZ-7.0-SC-SC1	7.0	≤0.3	-45～+65	41.5±5	100g 12 times	8
JZP-7.5-SC-SC1	7.5	≤0.3	-45～+65	41.5±5	100g 12 times	8
JZP-9.0-SC-SC1	9.0	≤0.3	-45～+65	41.5±5	100g 12 times	8
JZP-10.5-SC-SC1	10.5	≤0.3	-45～+65	41.5±5	100g 12 times	8
JZP-13.5-SC-SC1	13.5	≤0.3	-45～+65	41.5±5	100g 12 times	8
JZP-15-SC-SC1	15	≤0.3	-45～+65	41.5±5	100g 12 times	8
