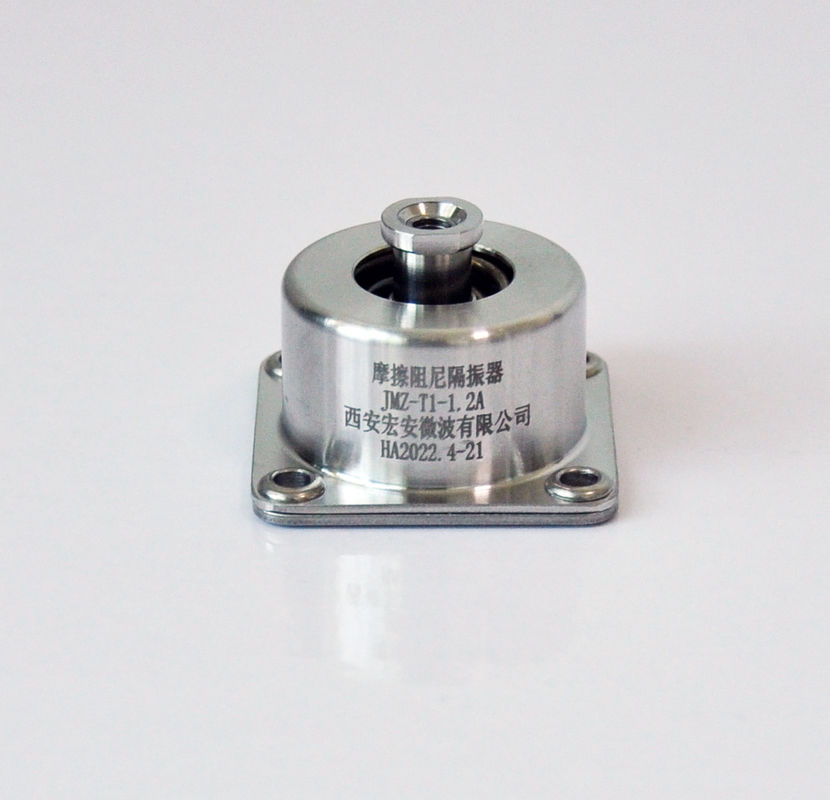

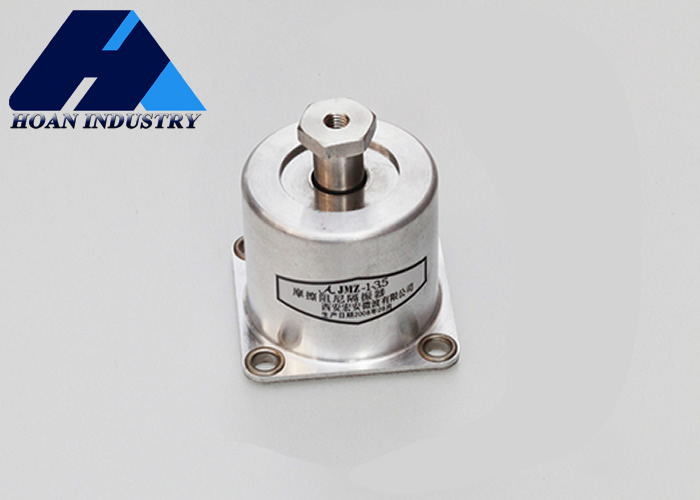

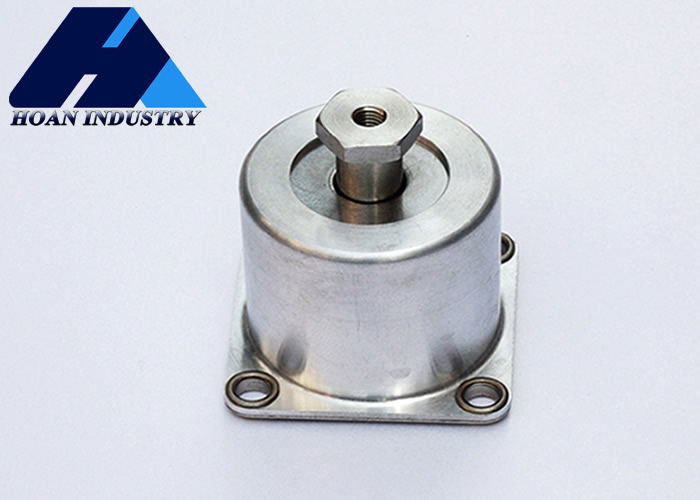

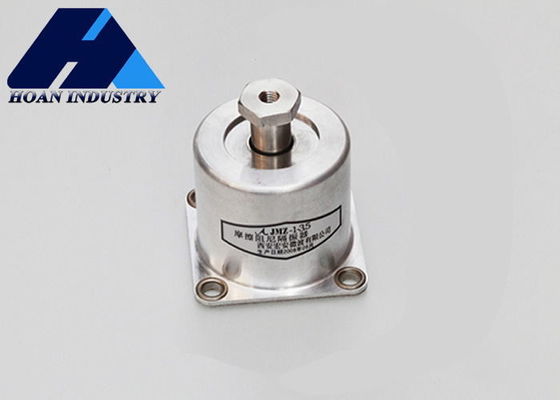

Name: JMZ-T Series Spring Isolator with Up to 95% Isolation Efficiency for Precision Manufacturing
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JMZ-T1-0.3
Availability: InStock

خونه > محصولات > جداکننده ی بهار >

JMZ-T Series Spring Isolator with Up to 95% Isolation Efficiency for Precision Manufacturing

JMZ-T Series Spring Isolator,95% Isolation Efficiency Spring Isolator,Precision Manufacturing Spring Isolator

95% Isolation Efficiency Spring Isolator

Precision Manufacturing Spring Isolator

محل منبع:

چین

نام تجاری:

Hoan

شماره مدل:

JMZ-T1-0.3

با ما تماس بگیرید

درخواست نقل قول

JMZ-T Series Spring Isolator with Up to 95% Isolation Efficiency for Precision Manufacturing

جزئیات محصول

سازگاری:

سازگار با انواع مختلف ماشین آلات و تجهیزات

دوام:

ماندگار

قابلیت تنظیم:

قابل تنظیم

کاهش سر و صدا:

مؤثر

ویژگی:

ظرفیت بار بالا ، جداسازی لرزش عالی ، بادوام

ابعاد:

اندازه های مختلف موجود است

رنگ:

نقره

گزارش تست ماشین آلات:

در دسترس نیست

بازده انزوا:

تا 95%

مدل:

JMZ-T

استفاده:

انزوای ارتعاش

نگهدار:

کم

مقاومت در برابر شوک:

قوی

برجسته کردن:

JMZ-T Series Spring Isolator,95% Isolation Efficiency Spring Isolator,Precision Manufacturing Spring Isolator

95% Isolation Efficiency Spring Isolator

Precision Manufacturing Spring Isolator

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش

شرایط پرداخت

L/C ، D/A ، D/P ، Western Union ، MoneyGram ، T/T

محصولات مرتبط

JMZ-T1-1.4 32mm Overall Width Spring Isolator with 1 Year Warranty and High Resilience for Industrial Vibration Isolation

بهترین قیمت رو بدست بیار

JMZ-T1-1.2 Spring Isolator with 95% Isolation Efficiency 32mm Overall Width and UL Listed for Vibration Isolation

بهترین قیمت رو بدست بیار

JMZ-T1-0.6 Spring Isolator with High Resilience and Strong Shock Resistance for Durable Vibration Control

بهترین قیمت رو بدست بیار

JMZ-T1-0.45 Friction Damping Vibration Isolator with Up to 95% Isolation Efficiency for 0-150°F Operating Temperature and 1 Year Warranty

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

86-29-88292913

حالا تماس بگیرید

توضیحات محصول

Precision Manufacturing Laboratory Measurement and High-End Communications Vibration Isolation with JMZ-T1-0.3

JMZ-T1 Series: Advanced Vibration Isolation Technology

In precision manufacturing, laboratory measurement, and high-end communications, environmental vibrations can significantly impact equipment performance. The JMZ-T1 Series vibration isolator from Xi'an Hoan Microwave provides an innovative solution to this challenge.

Unlike traditional vibration isolation methods, our friction damping technology acts like a "Tai Chi grandmaster," converting destructive mechanical energy into negligible thermal energy. This process creates an "absolute static zone" for sensitive equipment, ensuring:

Elimination of vibration interference from footsteps, vehicles, and HVAC systems
Protection for nanoscale precision equipment like lithography machines
Clear imaging for electron microscopes and other sensitive instruments
Effective filtering across low to mid-high frequency vibration spectra

Structural Dimensions

Technical Specifications

Model	Max PZ-Direction Load (kg)	PZ Displacement Under Max Load (mm)	H (mm)	h (mm)	d (mm)	Weight (g)	Shock Test	Resonance Frequency (Hz)	Operating Temperature Range (°C)
JMZ-T1-0.3	0.3	≤0.6	19.5±0.5	16	M4-7H/ M3-7H	≤58	30g,11ms	＜30	-65～+120
JMZ-T1-0.45	0.45
JMZ-T1-0.6	0.6
JMZ-T1-1.2	1.2		22±0.5	17.5
JMZ-T1-1.4	1.4
JMZ-T1-2.0	2.0

Performance Characteristics

Vibration Isolation Performance

Impact Resistance Performance
